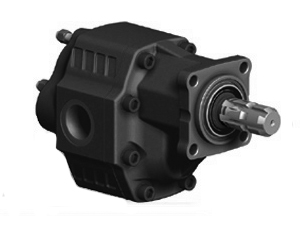

The first section of a tandem, the NPGH ASAE 1-3 / 8 gear pump working volume from 63 to 150 cm³ / rpm (l / min at 1000 rpm) the maximum working pressure to 325 bar, unidirectional rotation, autocompensation system (allows to keep stability ) during the entire service life), with side connection hole, cast iron housing, for heavy duty operating conditions , ASAE connection standard, persistent bronze plate (Optional).
OMFB pump type, designation |
Catalog number | Working volume | Maximum working pressure, |
Maximum speed of rotation, |
|
Left rotation | Right rotation | cm³ / rpm (l / min at 1000 rpm) |
bar | rpm | |
(1) TANDEM NPGH – 63 ASAE 1-3 / 8 | 10506600643 | 10506600634 | 63.70 | 325 | 2700.00 |
(1) TANDEM NPGH – 73 ASAE 1-3 / 8 | 10506600741 | 10506600732 | 74.87 | 315 | |
(1) TANDEM NPGH – 84 ASAE 1-3 / 8 | 10506600858 | 10506600849 | 85.96 | 290 | |
(1) TANDEM NPGH-100 ASAE 1-3 / 8 | 10506601017 | 10506601008 | 102.60 | 280 | |
(1) TANDEM NPGH-116 ASAE 1-3 / 8 | 10506601179 | 10506601160 | 119.24 | 270 | |
(1) TANDEM NPGH-116 A HEAVY DUTY ASAE 1-3 / 8 | 10592731171 | 119.24 | 270 | ||
(1) TANDEM NPGH – 133 ASAE 1-3 / 8 | 10506601348 | 10506601339 | 135.88 | 260 | 2500 |
(1) TANDEM NPGH-133-A ASAE 1-3 / 8 | 10592731340 | 135.88 | 260 | ||
(1) TANDEM NPGH-150 ASAE 1-3 / 8 | 10506601517 | 10506601508 | 149.75 | 220 | |
(1) TANDEM NPGH-150 A HEAVY DUTY ASAE 1-3 / 8 | 10592731519 | 149.75 | 220 |
