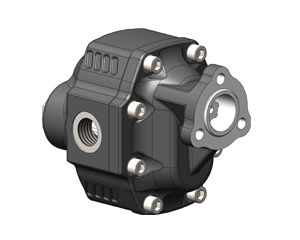

Gear pump NPGH UNI, with side and rear connection holes, unidirectional rotation, cast iron housing, auto-compensation system (allows to maintain the stability of parameters during the entire service life), for heavy (heavy duty) operating conditions, working volume from 63 to 150 cm / rpm (l / min at 1000 rpm), maximum operating pressure up to 290 bar  ,  UNI connection standard, bronze thrust plate (Optional).

OMFB pump type,
designation
Catalog number Working volume Maximum
working pressure,
Maximum
speed of rotation,
Left rotation Right rotation cm³ / rpm
(l / min at 1000 rpm)
bar rpm
NPGH-63 UNI 10501200647 10501200638 63.7 290 1800
NPGH-73 UNI 10501200745 10501200736 74.87 280
NPGH-84 UNI 10501200852 10501200736 85.96 260
NPGH-100 UNI 10501201011 10501201002 102.6 250 1500
NPGH-116 UNI 10501201173 10501201164 119.24 240
NPGH-133 UNI 10501201342 10501201333 135.88 220
NPGH-150 UNI 10501201511 10501201502 149.75 180
