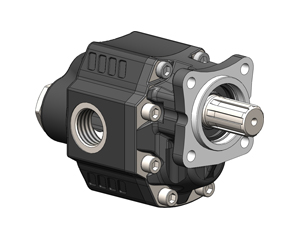

Gear pumps LTMH ISO SHORT

Gear pump LTMH ISO SHORT with side connection hole, cast iron housing, for medium and heavy (medium-heavy duty) operating conditions, working volume from 90 to 120 cm³ / rpm (l / min at 1000 rpm, maximum working pressure up to 230 bar)  ,  LTMH ISO SHORT connection standard, compact pump dimensions ideal for use with direct power take-offs, thrust bronze plate (Optional).

OMFB pump type,
designation
Catalog number Working volume Maximum
working pressure,
Maximum
speed of rotation,
Bidirectional (reversible rotation) cm³ / rpm
(l / min at 1000 rpm)
bar rpm
LTMH-90 ISO-SHORT 10503320906 90 230 1800
LTMH-100 ISO-SHORT 10503321003 100 220
LTMH-112 ISO-SHORT 10503321129 112 205
LTMH-120 ISO-SHORT 10503321209 120 195 1500
