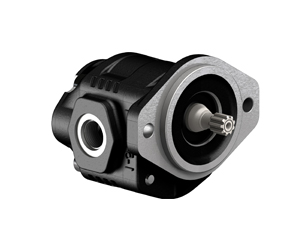

Gear pumps NPLH SAE-A

NPLH SAE-A gear pump   , with side and rear connection holes. Reversible cast iron pump, working volume from 10 to 40 cm / rpm (l / min at 1000 rpm pressure up to 325 bar connecting standard SAE-A (2 holes))  .

OMFB pump type,
designation
Catalog number Working volume Maximum
working pressure,
Maximum
speed of rotation,
Reversible cm³ / rpm
(l / min at 1000 rpm)
bar rpm
NPLH SAE-A
NPLH-10-SAE-A 10503410103 10 325 3000
NPLH-12-SAE-A 10503410121 11.92
NPLH-16-SAE-A 10503410167 16
NPLH-20-SAE-A 10503410201 20.1 280
NPLH-25-SAE-A 10503410256 25.2 225
NPLH-32-SAE-A 10503410327 32 190 2800
NPLH-40-SAE-A 10503410407 40 150 2500
