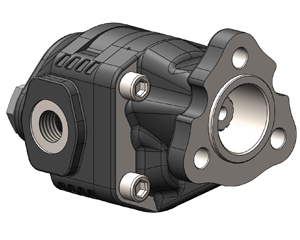

Gear pumps NPLU 13 DIN

Gear pump   NPLU 13 DIN  , connecting standard UNI (3-hole)  13 DIN  (13  slots  and shaft 19×22)  with a volume of 10 to 40  cm³  . maximum working pressure up to 280 bar. bronze thrust plate, cast iron body, unidirectional rotation for use on light trucks.

OMFB pump type,
designation
Catalog number Working volume Maximum
working pressure,
Maximum
speed of rotation,
Left rotation Right rotation cm³ / rpm
(l / min at 1000 rpm)
bar rpm
NPLU 13 DIN WITH REAR AND SIDE CONNECTED HOLES
NPLU-10 13-DIN 10500320108 10500320117 10.06 280 2200
NPLU-12 13 DIN 10500320126 10500320135 11.92 280
NPLU-14 13 DIN 10500300157 10500300148 13.8 280
NPLU-16 13 DIN 10500320162 10500320171 16.03 280
NPLU-25 13-DIN 10500320251 10500320260 25.15 220
NPLU-32 13-DIN 10500320322 10500320331 32.04 190 2000
NPLU-40 13-DIN 10500320402 10500320411 39.93 160 1800



Шестеренчатый насос OMFB_ NPLU_13_DIN
Шестеренчатый насос OMFB_ NPLU_13_DIN
Шестеренчатый насос OMFB_ NPLU_13_DIN
Шестеренчатый насос OMFB_ NPLU_13_DIN
