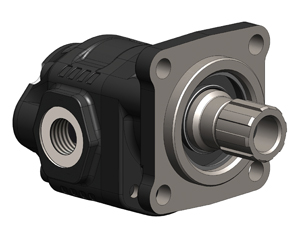

Gear pump   NPLU ISO,  with side and rear connecting holes: unidirectional gear pump action, cast iron housing, connecting standard ISO (4 holes) capacity from 10 to 40 cc at (l / min at 1000 rev / min). maximum working pressure up to 325 bar. bronze thrust plate for use on light trucks.

OMFB pump type,
designation
Catalog number Working volume Maximum
working pressure,
Maximum
speed of rotation,
Left rotation Right rotation cm³ / rpm
(l / min at 1000 rpm)
bar rpm
ISO NPLU WITH SIDE AND REAR CONNECTED APPROVALS
NPLU 10 – ISO 10500340104 10500340113 10.06  325 3000
NPLU 12 – ISO 10500340122 10500340131 11.92
NPLU 14 – ISO 10500340140 10500340159 13.8
NPLU 16 – ISO 10500340168 10500340177 16.03
NPLU 20 – ISO 10500340202 10500340211 20.12 290
NPLU 25 – ISO 10500340257 10500340266 25.15 260
NPLU 32 – ISO 10500340328 10500340337 32.04 220 2800
NPLU 40 – ISO 10500340408 10500340417 39.93 190  2500
