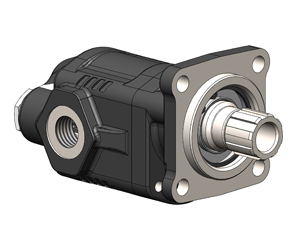

NPLH ISO gear pump, with side and rear connection holes. reversible cast iron pump with autocompensation system (allows to maintain the stability of parameters during the entire service life), for medium loads (medium-light duty), working volume from 6 to 40 cm / rpm at 1000 rpm pressure up to 325 bar connection standard ISO (4 holes)  ,  not suitable for radial loads, bronze thrust plate, prepared for tandem mounting, used on light trucks.

OMFB pump type,
designation
Catalog number Working volume Maximum
working pressure,
Maximum
speed of rotation,
Reversible cm³ / rpm
(l / min at 1000 rpm)
bar rpm
NPLH-6-ISO 10500440069 6.3 325 3000
NPLH-10-ISO 10500440103 10.06
NPLH-12-ISO 10500440121 11.92
NPLH-14-ISO 10500440149 13.8
NPLH-16-ISO 10500440167 16.03
NPLH-20-ISO 10500440201 20.1 290
NPLH-25-ISO 10500440256 25.1 260
NPLH-32-ISO 10500440327 32.04 220 2800
NPLH-40-ISO 10500440407 39.9 190 2500
