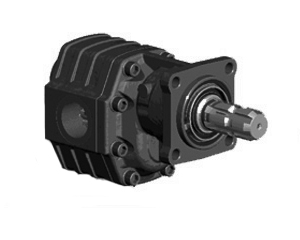

Gear pumps NPH ISO ASAE 1-3 / 8, working volume from 17 to 123 cm³ / rpm (l / min at 1000 rpm) pressure to 325 bar, with lateral and back connecting apertures, with system of autocompensation (allows to keep stability parameters, during the entire service life), cast iron housing, for medium and heavy (medium-heavy duty) operating conditions, flange connection with 4 holes ASAE, shaft 1-3 / 8, bronze thrust plate
OMFB pump type, designation |
Catalog number | Working volume | Maximum working pressure, |
Maximum speed of rotation, |
|
left | right | cm³ / rpm (l / min at 1000 rpm) |
bar | rpm | |
NPH-ISO-ASAE 1-3 / 8-17 | 10506100184 | 10506100175 | 17.04 | 325 | 3000 |
NPH-ISO-ASAE 1-3 / 8-22 | 10506100237 | 10506100228 | 22.15 | ||
NPH – ISO-ASAE 1-3 / 8-27 | 10506100282 | 10506100273 | 26.18 | ||
NPH-ISO-ASAE 1-3 / 8-34 | 10506100353 | 10506100344 | 38.88 | 310 | 2800 |
NPH-ISO-ASAE 1-3 / 8-43 | 10506100442 | 10506100433 | 43.12 | 300 | 2500 |
NPH-ISO-ASAE 1-3 / 8-51 | 10506100522 | 10506100513 | 50.82 | 280 | |
NPH-ISO-ASAE 1-3 / 8-61 | 10506100620 | 10506100611 | 60.06 | 250 | 2000 |
NPH -ISO -ASAE 1-3 / 8- 61 FORM “A” | 10506140622 | 60.06 | 250 | ||
NPH-ISO-ASAE 1-3 / 8-73 | 10506100746 | 10506100737 | 72.88 | 230 | 1800 |
NPH-ISO-ASAE 1-3 / 8-82 | 10506100833 | 10506100826 | 81.08 | 220 | |
NPH -ISO -ASAE 1-3 / 8- 82 FORM “A” | 10506140833 | 81.08 | |||
NPH-ISO-ASAE 1-3 / 8-100 | 10506101012 | 10506101003 | 98.18 | ||
NPH -ISO -ASAE 1-3 / 8- 100 FORM “A” | 10506141014 | 98.18 | |||
NPH-ISO-ASAE 1-3 / 8-125 | 10506101263 | 10506101254 | 122.72 | 200 |
