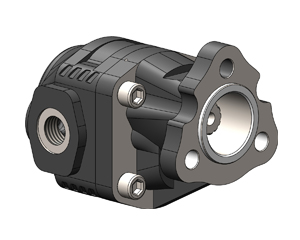

Gear pumps NPLH UNI 13 DIN

Gear pump NPLH (UNI) 13 DIN with side and rear connection holes, cast iron housing, reversible (bidirectional rotation), auto-compensation system (allows to maintain the stability of parameters during the entire service life), for medium loads (medium-light duty) capacity from 6 to 40. cm³ / rpm (l / min at 1000 rpm pressure up to 280 bar connecting standard UNI (3 bolts) 13 DIN) (13 slots and shaft 19×22)  ,  bronze thrust plate, for use on light trucks.

OMFB pump type,
designation
Catalog number Working volume Maximum
working pressure,
Maximum
speed of rotation,
Reversible cm³ / rpm
(l / min at 1000 rpm)
bar rpm
NPLH 6-13-DIN 10500410065 6,288 th most common 280 2200
NPLH 10-13-DIN 10500410109 10,062 th most common
NPLH 12-13-DIN 10500410127 11.92
NPLH 16-13-DIN 10500410163 16,035 th most common
NPLH 20-13-DIN 10500410207 20,123 th most common 260
NPLH 25-13-DIN 10500410252 25,154 th most common 220
NPLH 32-13-DIN 10500410323 32,042 th most common 190 2000
NPLH 40-13-DIN 10500410403 39,933 th most common 160 1800
Шестеренчатый _насос_OMFB_NPLH_UNI_13_DIN_буклет_1
Шестеренчатый _насос_OMFB_NPLH_UNI_13_DIN_буклет_1
Шестеренчатый _насос_OMFB_NPLH_UNI_13_DIN_буклет_2
Шестеренчатый _насос_OMFB_NPLH_UNI_13_DIN_буклет_2
