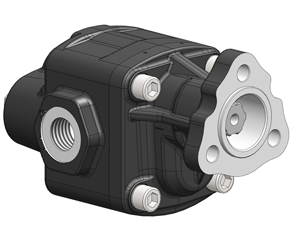

NPK UNI gear pump, cast iron gear pump unidirectional rotation, with side and rear connection holes, working volume from 10 to 46 cm³ / rpm (l / min at 1000 rpm), maximum working pressure up to 330 bar, connection standard holes ), for medium loads (medium-light duty), bronze thrust plate.

OMFB pump type,
designation
Catalog number Working volume Maximum
working pressure,
Maximum
speed of rotation,
Left Right cm³ / rpm
(l / min at 1000 rpm)
bar rpm
NPK-10-UNI 10505000114 10505000105 10.5  330 3000
NPK-16-UNI 10505000178 10505000169 15.8
NPK-20-UNI 10505000212 10505000203 19.8 300
NPK-25-UNI 10505000267 10505000258 25
NPK-32-UNI 10505000338 10505000329 32 290
NPK-40-UNI 10505000418 10505000409 40  260
NPK-46-UNI 10505000472 10505000463 45.2 250
