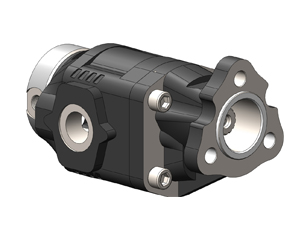

The first section of the tandem, NPLH UNI gear pump

The first section of the tandem, gear pump NPLH (UNI) 13 DIN, with side holes. reversible cast iron pump with autocompensation system (allows to maintain the stability of parameters during the entire service life), for medium loads (medium-light duty), working volume from 6 to 40 cm / rpm at 1000 rpm pressure up to 325 bar connection standard UNI (3 holes) 13 DIN (13 slots and shaft 19×22)  ,  bronze thrust plate, prepared for tandem mounting, used on light trucks.

OMFB pump type,
designation
Catalog number Working volume Maximum
working pressure,
Maximum
speed of rotation,
Reversible cm³ / rpm
(l / min at 1000 rpm)
bar rpm
NPLH 6-13-DIN 10500420063 6,288 th most common 325 3000
NPLH 10-13-DIN 10500420107 10,062 th most common
NPLH 16-13-DIN 10500420161 16,035 th most common
NPLH 20-13-DIN 10500420205 20,123 th most common 290
NPLH 25-13-DIN 10500420250 25,154 th most common 260
NPLH 32-13-DIN 10500420321 32,042 220 2800

Шестеренчатый _насос_OMFB_NPLH_UNI_13_DIN_буклет_1

Шестеренчатый _насос_OMFB_NPLH_UNI_13_DIN_буклет_1

Шестеренчатый _насос_OMFB_NPLH_UNI_13_DIN_буклет_2
Шестеренчатый _насос_OMFB_NPLH_UNI_13_DIN_буклет_2
