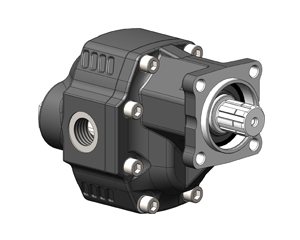

Gear pump NPGH ISO, with side and rear connection holes, unidirectional rotation, cast iron housing, auto-compensation system (allows to maintain the stability of parameters, during the entire service life), for heavy (heavy duty) operating conditions, working volume from 63 to 150 cm / rpm (l / min at 1000 rpm), maximum operating pressure up to 290 bar, ISO connection standard, persistent bronze plate (Optional).

OMFB pump type,
designation
Catalog number Working volume Maximum
working pressure,
Maximum
speed of rotation,
Left rotation Right rotation cm³ / rpm
(l / min at 1000 rpm)
bar rpm
NPGH-63 ISO 10501210645 10501210636 63.7 290 1800
NPGH-73 ISO 10501210743 10501210734 74.87 280
NPGH-84 ISO 10501210850 10501210841 85.96 260
NPGH-100 ISO 10501211019 10501211000 102.6 250 1500
NPGH-116 ISO 10501211171 10501211162 119.24 240
NPGH-133 ISO 10501211340 10501211331 135.88 220
NPGH-150 ISO 10501211519 10501211500 149.75 180
